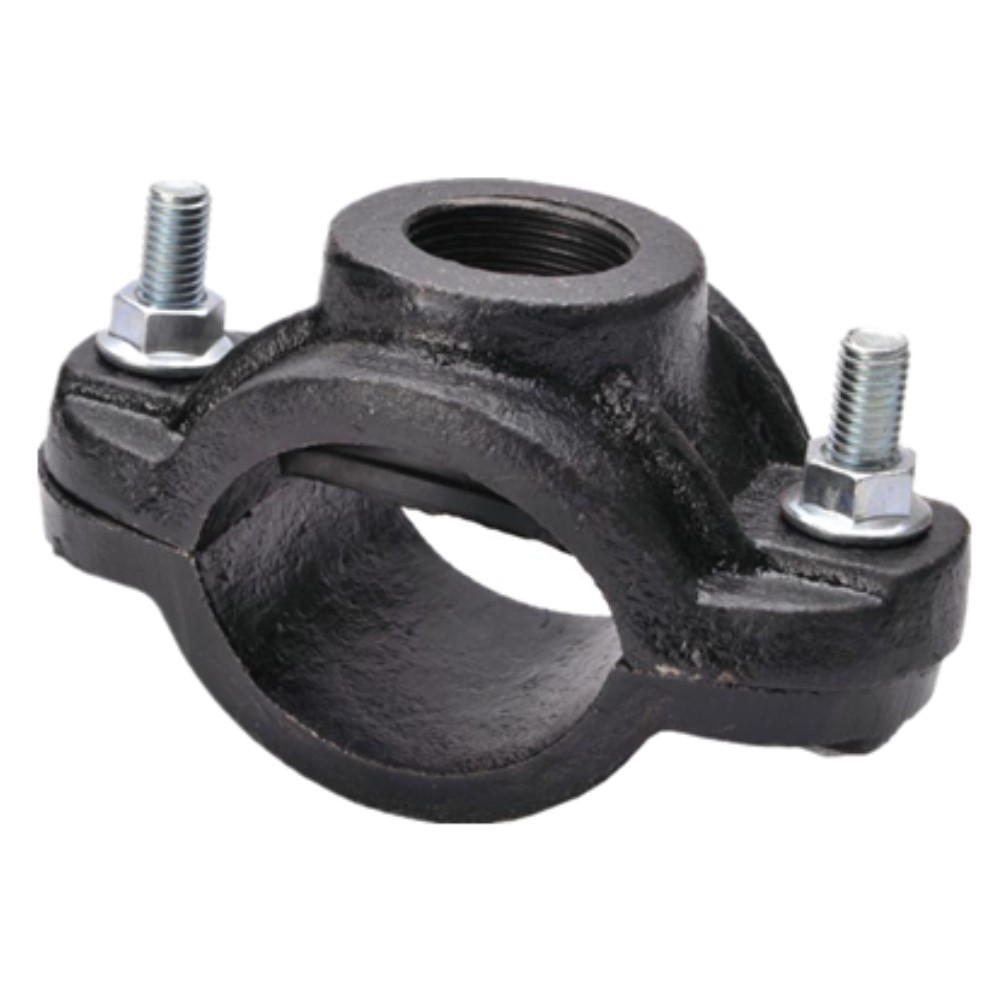

Gray cast iron saddle clamp for PVC pipe
Saddle clamps are versatile fastening devices used to secure pipes or tubes. These clamps provide stability, support, and a secure attachment point for pipes, mufflers, and other components. Whether in industrial applications or exhaust systems, saddle clamps play a crucial role in maintaining structural integrity.
Description
■ Features
· PN16 working pressure
■ Main Parts and Materials
· Gray cast iron material with Black Painting
· Galvanized steel bolts, nuts;
Dacromet is available according to request
■ Gasket
· EPDM Gasket
■ Dimensions (MM)
| DN | Thread |
| 40 | 3/4″ |
| 50 | 3/4″ |
| 50 | 1″ |
| 63 | 3/4″ |
| 63 | 1″ |
| 63 | 1 1/4″ |
| 75 | 3/4″ |
| 75 | 1″ |
| 75 | 1 1/4″ |
| 90 | 3/4″ |
| 90 | 1″ |
| 90 | 1 1/4″ |
| 90 | 1 1/2″ |
| 90 | 2″ |
| 110 | 3/4″ |
| 110 | 1″ |
| 110 | 1 1/4″ |
| 110 | 1 1/2″ |
| 110 | 2″ |
| 125 | 3/4″ |
| DN | Thread |
| 125 | 1″ |
| 125 | 1 1/4″ |
| 125 | 1 1/2″ |
| 125 | 2″ |
| 125 | 2 1/2″ |
| 125 | 3″ |
| 140 | 1″ |
| 140 | 1 1/4″ |
| 140 | 1 1/2″ |
| 140 | 2″ |
| 140 | 2 1/2″ |
| 140 | 3″ |
| 160 | 3/4″ |
| 160 | 1″ |
| 160 | 1 1/4″ |
| 160 | 1 1/2″ |
| 160 | 2″ |
| 160 | 2 1/2″ |
| 160 | 3″ |
| 180 | 1″ |
| DN | Thread |
| 180 | 1 1/4″ |
| 180 | 1 1/2″ |
| 180 | 2″ |
| 180 | 3″ |
| 200 | 3/4″ |
| 200 | 1″ |
| 200 | 1 1/4″ |
| 200 | 1 1/2″ |
| 200 | 2″ |
| 200 | 2 1/2″ |
| 200 | 3″ |
| 250 | 1″ |
| 250 | 1 1/4″ |
| 250 | 1 1/2″ |
| 250 | 2″ |
| 250 | 2 1/2″ |
| 250 | 3″ |
| 315 | 2″ |
| 315 | 2 1/2″ |
| 315 | 3″ |
