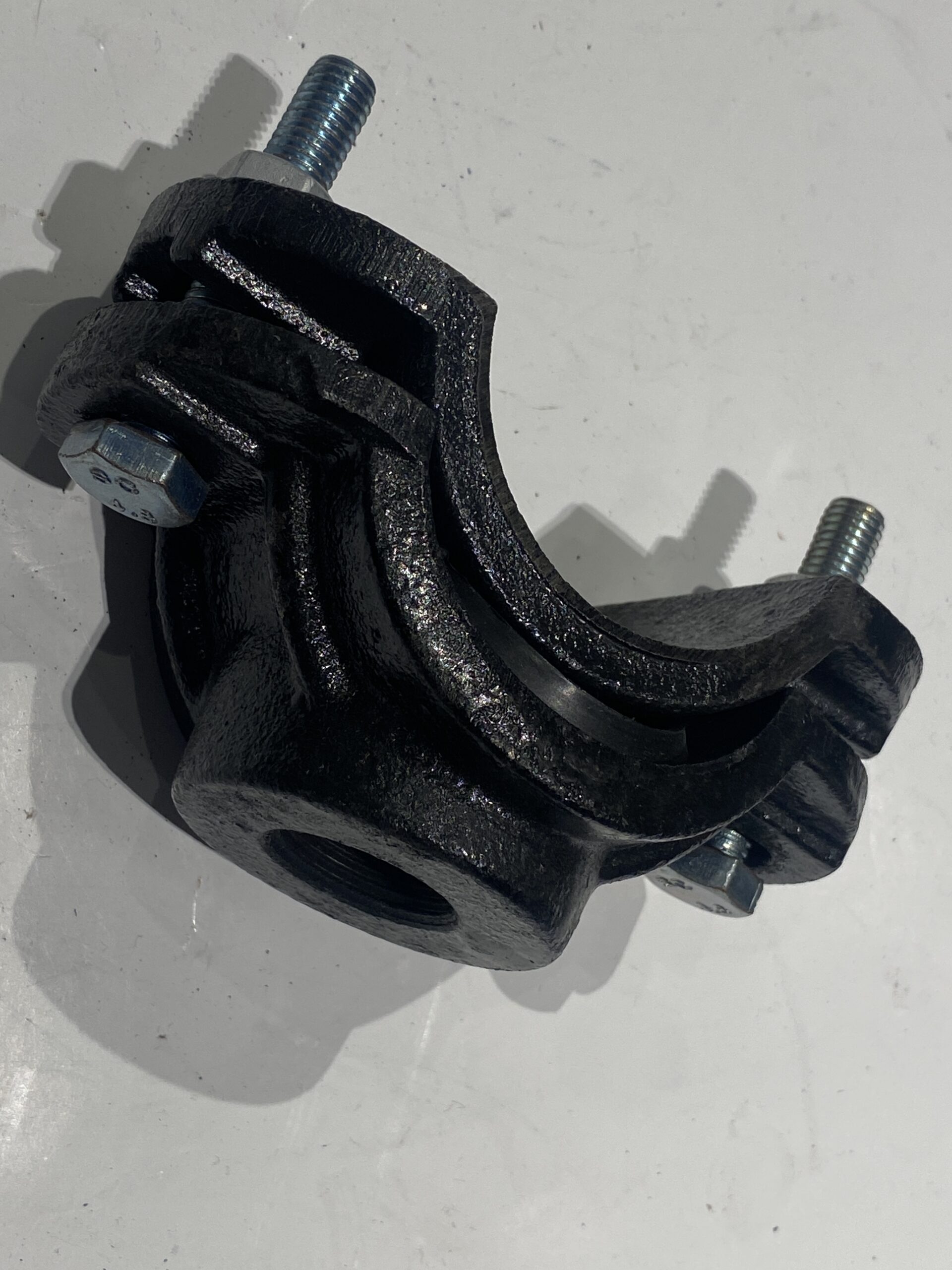

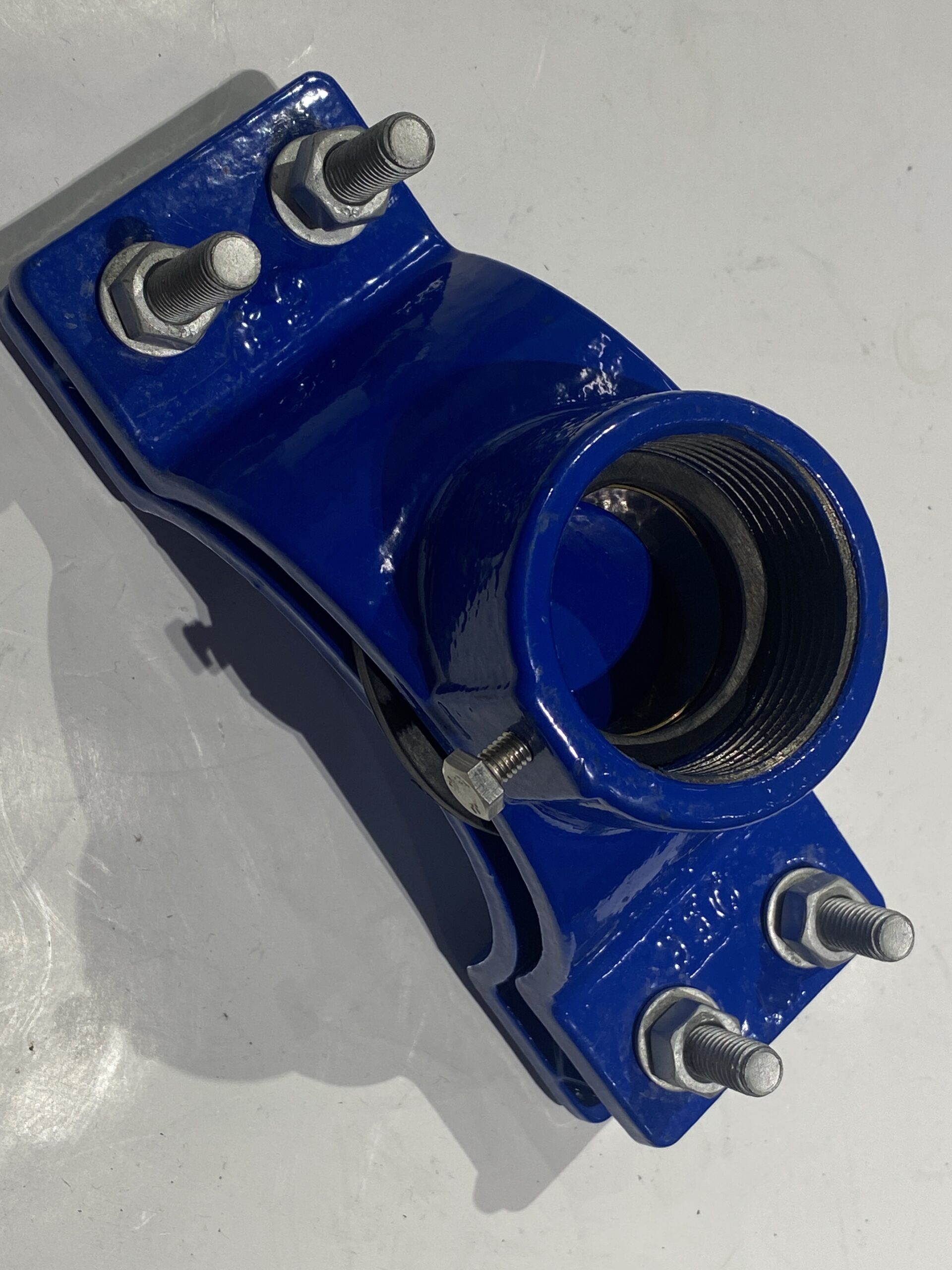

Saddle Clamps

A saddle clamp is a semicircular pipe bracket designed to fit around tubing or pipes. Its primary purpose is to provide a secure attachment point for various tasks, including:
Saddle-tapping: Creating a branch connection on an existing pipe.
Pipe support: Stabilizing pipes on flat surfaces.
Branch connections: Joining additional pipes to the main pipeline.
These clamps come in different materials, such as steel or stainless steel, and can withstand high pressure and temperatures.

Description

Features

■ Main Parts and Materials
· Ductile iron material with FBE coated
· Galvanized steel bolts, nuts
■ Gasket
· EPDM Gasket
■ Dimensions (MM)
■ Features
· Epoxy coating min. 250 microns.
· Working pressure PN10, PN16

Technical Parameters

1-Drawing



2-Material Specification

Item No. Item Name Material
1 Body Cast Iron/Ductile Iron
2 Flange Cast Iron/Ductile Iron
3 Rubber EPDM/NBR/BRASS/SS
4 Bolt Galvanized Steel
5 Nut Galvanized Steel

3-Dimensions(mm)

Size G h1 h2 h3 r1
50×20 M40x3 22 15.5 15.5 27
63×20 M40x3 22 22 22 33.5
75×20 M40x3 22 28 28 39.5
90×20 M40x3 22 35.5 35.5 47
110×20 M40x3 22 45.5 45.5 57
125×20 M40x3 22 53 53 64.5
140×20 M40x3 22 60.5 60.5 72
160×20 M40x3 22 70.5 70.5 82
200×20 M40x3 22 90.5 90.5 102
225×20 M40x3 22 103 103 114.5
250×20 M40x3 22 115.5 115.5 127
315×20 M40x3 22 148 148 159.5
63×40 M55x3 22 22 22 33.5
75×40 M55x3 22 28 28 39.5
90×40 M55x3 22 35.5 35.5 47
110×40 M55x3 22 45.5 45.5 57
125×40 M55x3 22 53 53 64.5
140×40 M55x3 22 60.5 60.5 72
160×40 M55x3 22 70.5 70.5 82
200×40 M55x3 22 90.5 90.5 102
225×40 M55x3 22 103 103 114.5
250×40 M55x3 22 115.5 115.5 127
315×40 M55x3 22 148 148 159.5
